Standard Metal Door Frames Drywall Application
Non-rated Metal Door Frames Application for Drywall
Profiles and Applications
The following standard profiles are available for drywall non-rated metal door frames:
Non-rated Profiles
- PRO-NX
- PRO-N86
- PRO-N93
- PRO-N102
- PRO-N114
- PRO-N123
- PRO-N145
- PRO-N152
- PRO-N194
- PRO-NMX
- PRO-NM86
- PRO-NM93
- PRO-NM102
- PRO-NM114
- PRO-NM123
- PRO-NM145
- PRO-NM152
- PRO-NM194
| Metal Door Frame Wall Application Chart | |
| Drywall | Stud -Steel/Timber |
| eg. CSR 613 System | 64mm stud with 1 layer of 10 mm plasterboard on each side |
| eg. CSR 613 System | 64mm stud with 1 layer of 13 mm plasterboard on each side |
| eg. CSR 075 System | 76mm stud with 1 layer of 13 mm plasterboard on each side |
| eg. CSR 613 System | 64mm stud with 1 layer of 16 mm plasterboard on each side |
| eg. CSR 040 System | 92mm stud with 1 layer of 10 mm plasterboard on each side |
| eg. CSR 040 System | 92mm stud with 1 layer of 13 mm plasterboard on each side |
PROFILES LEGEND
N - Non-rated mini door frame with 41mm rebate and 15mm stop to suit 35 - 38 mm thickness hollow/solid core doors.
NM - Non-rated maxi door frame with 47mm rebate and 15mm stop to suit 40 - 42 mm thickness hollow/solid core doors.
Standard Reveal Sizes
The standard reveal sizes available are as follows:
| Height | 2055 mm and 2065 mm | ||
| Width | Singles | Doubles | |
| 624 mm | 1246 mm | ||
| 724 mm | 1446 mm | ||
| 774 mm | 1546 mm | ||
| 824 mm | 1646 mm | ||
| 874 mm | |||
| 924 mm | |||
Reveal Visual Reference
Metal Door Frames Handing - Non-rated
Fire rated Metal Door Frames Application for Drywall
Profiles and Applications
The following standard profiles are available for drywall Fire rated metal door frames:
Fire rated profiles
- PRO-FX
- PRO-F114
- PRO-F145
- PRO-F152
- PRO-F194
- PRO-FMX
- PRO-FM114
- PRO-FM145
Fire rated double door frames are only for 45-47 mm doors, therefore 51 mm rebate is required. Pro Industries Fire rated metal door frames are manufactured to AS1905.1 2005. All fire rated metal door frames need to be backfilled.
| Fire Rated Metal Door Frames Wall Application Chart | |
| Drywall | Stud -Steel/Timber |
| eg. CSR 611 System | |
| eg. CSR 049 System | |
| eg. CSR 153 System | |
| eg. CSR EC210 System | |
PROFILES LEGEND
F - Fire rated mini door frame with 41mm rebate and 25mm stop to suit 35 - 38 mm thickness fire rated doors.
FM - Fire rated maxi door frame with 47mm rebate and 25mm stop to suit 40 - 42 mm thickness fire rated doors.
Standard Reveal Sizes
The standard reveal sizes available are as follows:
| Height | 2055 mm and 2065 mm | |
| Width | Singles | Doubles |
| 624 mm | 1246 mm | |
| 724 mm | 1446 mm | |
| 774 mm | 1546 mm | |
| 824 mm | 1646 mm | |
| 874 mm | ||
| 924 mm | ||
Reveal Visual Reference
Fire Rated Metal Door Frames Handing

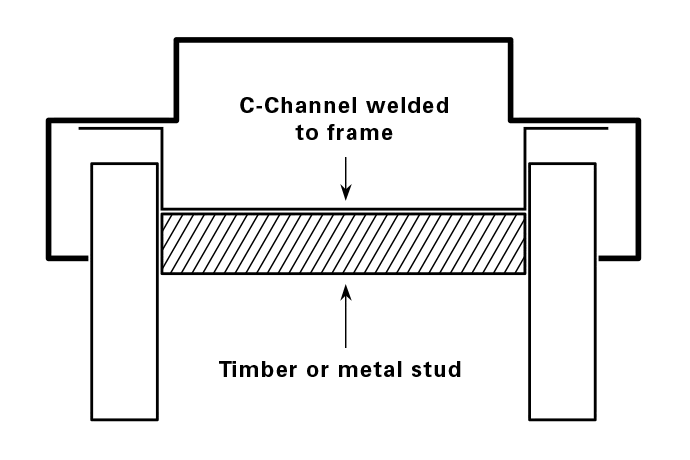

Fixing Methods for Drywall
-

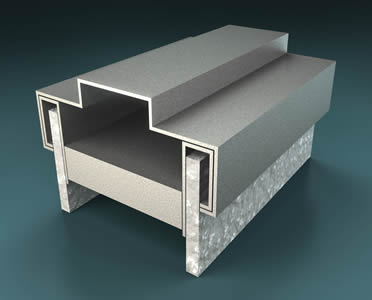

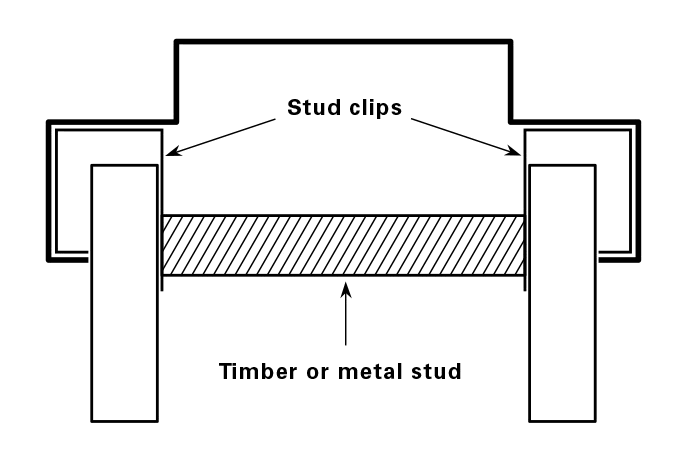

Stud Clips
Suitable for use in non-rated plasterboard partition walls.
-
Strap Fixings
Suitable for use in non-rated and one hour fire-rated plasterboard partition walls. Available to suit linings of 16mm, 13mm, 10mm and 6mm.
